316 Stainless steel plate

Stainless steel plate is a relatively flexible industrial building material made of stainless steel, which is generally used for mechanical production and industrial buildings, and is an industrial material. The surface of the stainless steel coil is relatively smooth, and the corrosion resistance is the strongest of all the coils, and almost no rust.

Classification ：

Stainless steel plate/sheet

+86-18866125258

sales4@yinghaometal.com

E-mail

CHEMISTRY TYPICAL

Carbon: 0.08 max Manganese: 2.00 max Silicon: 1.00 max Chromium: 16.00-18.00 Nickel: 10.00-14.00 Molybdenum: 2.00-3.00 Phosphorus 0.040 Sulfur: 0.030 max Copper: 0.75 max Iron: Balance

PHYSICAL PROPERTIES OF 316 STAINLESS STEEL

Density: 0.29 lbs/in3 7.99 g/cm3

Electrical Resistivity: microhm-in (microhm-cm):
68 ° F (20 ° C): 29.4 (74.0)

Specific Heat: BTU/lbl° F (kJ/kg•K):
32 - 212 ° F (0 - 100 °C): 0.12 (0.50)

Thermal Conductivity: BTU/hr/ft2/ft/°F (W/m•K):
At 212 °F (100 °C): 9.4 (16.2)
At 932 °F (500 °C): 12.4 (21.4)

Mean Coefficient of Thermal Expansion: in/inl°F (µm/m•K)
32 - 212 °F (0 - 100 °C): 8.9 x 10-5 (16.0)
32 - 600 °F (0 - 315 °C): 9.0 x 10-5 (16.2)
32 - 1000 °F (0- 538 °C): 9.7 x 10-5 (17.5)
32 - 1200 °F (0 - 649 °C): 10.3 x 10-5 (18.5)
32 - 1500 °F (0 - 871 °C): 11.1 x 10-5 (18.5)

Modulus of Elasticity: ksi (MPa)
28 x 103 (193 x 103) in tension
11 .2 x 103 (77 x 103) in torsion

Magnetic Permeability: H = 200 Oersteds: Annealed < 1.02 max

Melting Range: 2500 - 2590 °F (1371 - 1421 °C)

MECHANICAL PROPERTIES OF 316 STAINLESS STEEL AT ROOM TEMPERATURE

Ultimate Tensile Strength: 75 KSI min (515 MPa min) Yield Strength (0.2% Offset): 30 KSI min (205 MPa min) Elongation: 40% min Hardness: Rb 95 max

TEMPERED

Type 316 can be rolled to achieve the temper properties required by specific customers and/or manufacturing requirements. For tempers 1/2 hard or above consult Ulbrich Technical Services for more information.

More details

Stainless Steel Sheet/Plate
Width	100mm ~ 2000mm
Thickness	0.2mm ~ 100mm	Thickness/width tolerance	+/-0.02mm
Standard	ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2
Surface	2B,BA,8KMirror,Drawing HL,N Titanium plating,Etching,Embossing
specification	10002000/L,12192438/L,15003000/L,15006000/L,18006000/L,20006000/L,2200*6000/L
Grade	201,202,301,304,304j1,304l,321,309s,310s,2205,409l,410,410s,420,420j1,420j2,430,439,2205，2507 409l,443,444,etc
Application	Medical equipment,Food industry,Table-wares,Construction,Kitchen utensils,Chemical industry
Main Features	1.Environmental protection: can effectively reduce environmental pollution. 2.Corrosion resistance: Strong anti-fouling, acid, corrosion, wear resistance, non-radioactive. 3.Surface cleanliness: The product surface is smooth and compact, not easy to be polluted by dust, and has good self-cleanliness. 4.Easy Maintenance: A slight loss is easy to repair.

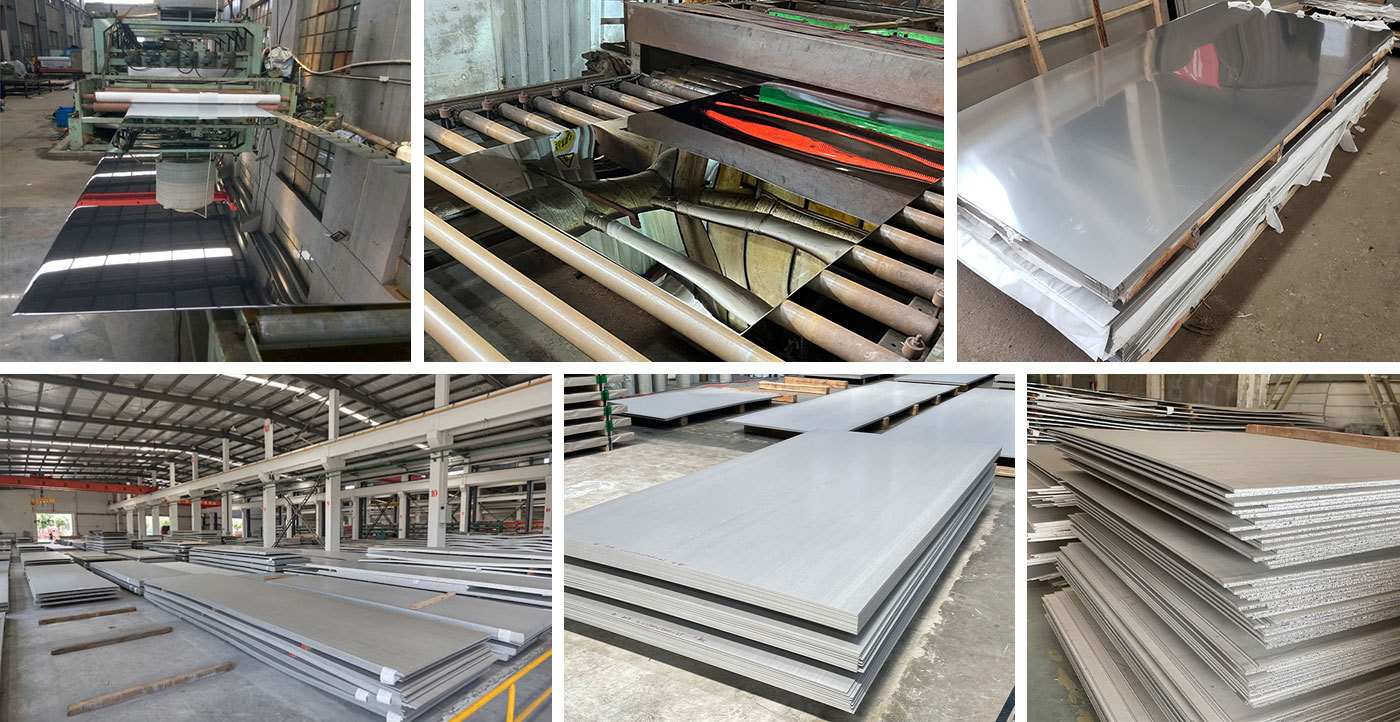

Factory appearance and appearance

Shandong Yinghao Steel Co., Ltd. has tens of thousands of square meters of plant. The company has abundant capital, sufficient supply of goods and convenient transportation. The company adheres to the external market as the center, the internal management as the center, and takes the road of quality and efficiency development, and has achieved good economic and social benefits.
Company's products: stainless steel series, carbon steel series, aluminum series, galvanized, color coating, coil, seamless pipe, welded pipe, square pipe, round rod, profile, steel wire, steel strand and other products. Products sell well all over the country, and exported to the EU, the United States, Australia, Southeast Asia, the Middle East and other more than 50 countries, we can also customize products according to your requirements.
We have advanced processing equipment, such as automatic submerged arc welding machine, CNC cutting machine and other equipment, strict control of product quality. In line with the business principle of mutual benefit, we have won the trust of customers with professional service, quality products and competitive prices. We warmly welcome domestic and foreign customers to cooperate with us and achieve success together.
Welcome new and old customers to visit, negotiate, win-win cooperation!

Customer Photos

Our company's service concept is: Honesty, harmony and win-win,. We take customer satisfaction as the business philosophy. Customer’s encourage and support is our unremitting power. Wish we can get your more attention and cooperation.

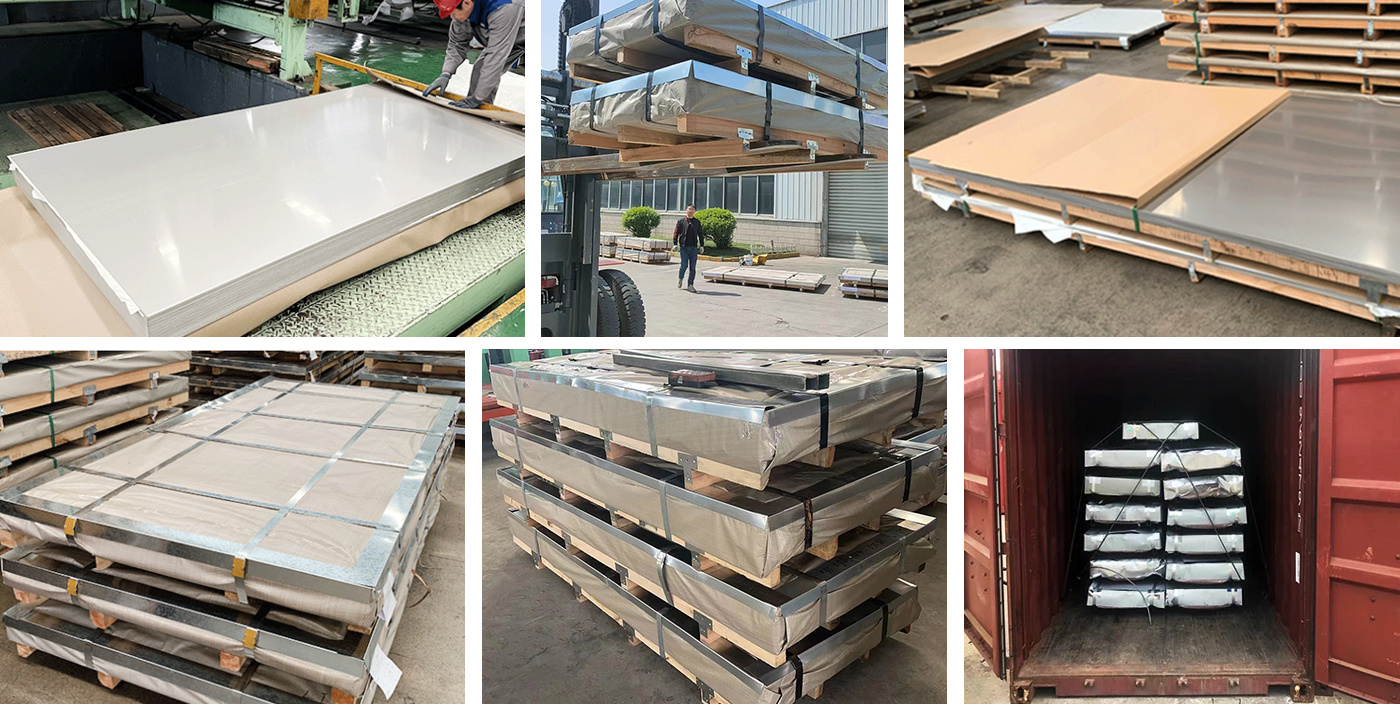

Packing and delivery

Over the years since its establishment, the company has adhered to the tenet of "honoring contracts and keeping promises, customers first, reputation first, quality first", insisting on customer needs as the center, With the business philosophy of "reaching what customers want and thinking about what customers think", with the business principle of "one sales, small profits but quick turnover, genuine goods at a reasonable price, and timely supply", we handle steel pipes and profiles of various specifications and materials for our customers.For many years, the company has been established, adhering to the purpose of "respecting contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "achieve what customers think, think what customers think" business philosophy, to "one sale, small profit, real price, timely delivery" business principle, we manage all kinds of specifications and materials of steel pipe and profile for customers.

Application field

The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.

PARTNER

CERTIFICATE OF HONOR

The company's products cover stainless steel coil, stainless steel pipe, stainless steel bar and stainless steel profiles. The company has plasma cutting machine, coil flattening equipment, laser cutting machine, 8K mirror, frosted wire drawing, film and titanium plating equipment, which can be used for stainless steel material flattening, slitting, cutting plate, oil grinding wire drawing, whole roll oil film wire drawing, 8K mirror, titanium and other processing.
